Heatlok HFO Pro

SPRAY FOAM MAGAZINE – Show Issue 2021 – Heatlok® HFO™ Pro, with an R-value of 7.4 at 1 inch, is designed as a continuous insulation solution with an ultra-low global warming potential blowing agent. Tested and certified as an air barrier, vapor retarder, water barrier and thermal insulation.

Heatlok HFO Pro leverages Honeywell’s Solstice® Liquid Blowing Agent technology, which has a GWP of 1, 99.9% lower than traditional blowing agents, and complies with the Montreal Protocol designed to lower the use of global warming potential gases.

Product features:

• R-value = 7.4 @ 1 inch, R-11 @ 1.5 inches
• 20% yield increase and improved flame spread over Heatlok Soy 200 Plus
• 5% more recycled & renewable content than Heatlok Soy 200 Plus
• Superior adhesion and compressive strength
• Passes NFPA 285 with brick, stone and masonry exterior.
• Class II vapor retarder at 1 inch
• Exceeds ASHRAE 90.1 insulation requirements at 1.5 inches
• ABAA Certified

Benefits of using Heatlok HFO Pro for Radon Abatement

Heatlok HFO Pro has been tested for its resistance to radon gas by recognized independent laboratory tests that are comparing it to a 6 mil. polyethylene sheet (CAN-CGSB 51.34-M) for the abatement of radon gas. The results demonstrate that only 1.25” (32mm) of Heatlok HFO Pro is 65 times more resistant to radon migration than 6-mil polyethylene.

• 65 times more resistant to radon gas than a 6-mil polyethylene membrane (at 1.25”)

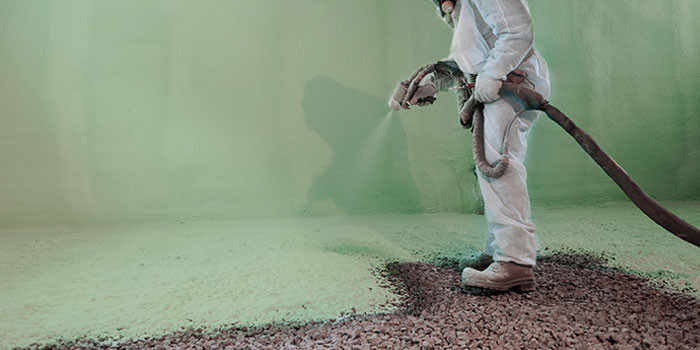

• Can be sprayed directly on crushed stone due to high compression strength
• Continuous insulation with no joints. Requires no sealant, tape or cutting of materials
• Exceeds code by providing a 7.4/inch R-value under-slab surface
• Tested in accordance with ASTM E2178 and K124/02/95 (method C of ISO/TS 11665-13)
• ICC Compliant

Use Heatlok HFO Pro on Exterior Foundations

In new buildings, insulation is often installed from the interior. Yet the foundation can easily be accessed from the exterior and insulated on its cold side, below grade, before backfilling, which is the preferred method of insulating a below-grade foundation. Existing homes often have to be excavated to waterproof the foundation as a result of water infiltration. Heatlok HFO can be sprayed on the entire surface of the foundation and even cover the footing to create a slope towards the drain. Applying Heatlok HFO directly to the concrete, blocks or stone is recommended, depending on the type of foundation.

• High R-value means lower energy costs
• Perfect seal eliminates leaks and water damage
• Quick installation saving time on the project
• Good adhesion means it will not sag or move over time
• Suitable for all building types
• Will not support mold or fungal growth
• Durable and will not deteriorate over time
• Continuous barrier prevents water infiltration
• Resistant to flood damage 2,3 and can stay in place after a flood
